A high precision general purpose ADC which can run from 2V to 5V power/logic, can measure a large range of signals and is super easy to use.

• 12-bit precision at 3300 samples/second over I2C.
• Can be configured as 4 single-ended input channels, or two differential channels.
• Includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range.

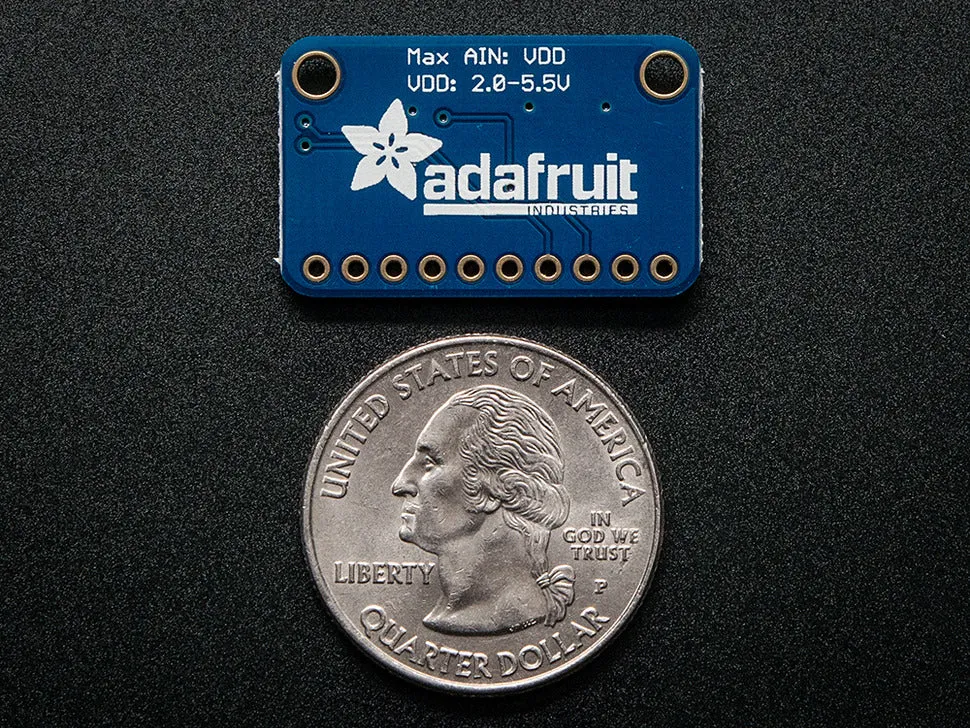

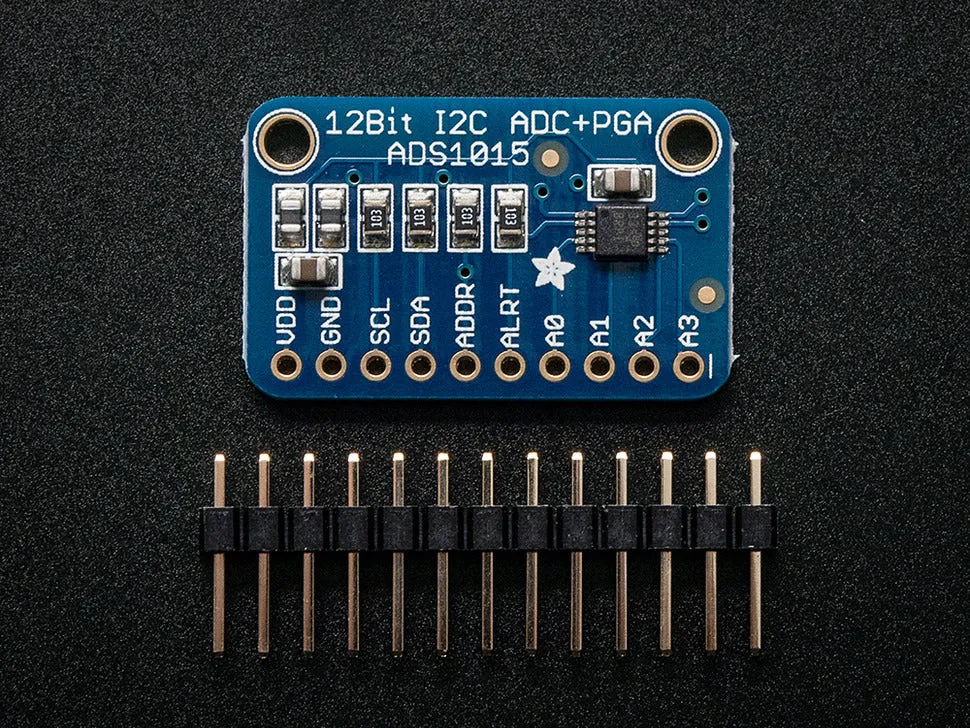

• Small chip so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet

To get you started, there is example code for both the Raspberry Pi (in our ) and Arduino (in our ADS1X15 ) Simply connect GND to ground, VDD to your logic power supply, and SCL/SDA to your microcontroller's I2C port and run the example code to start reading data.
